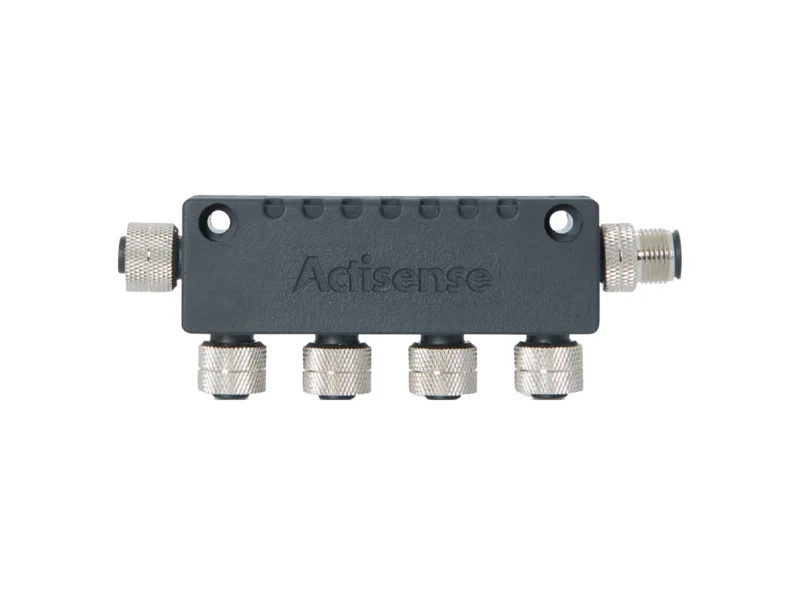

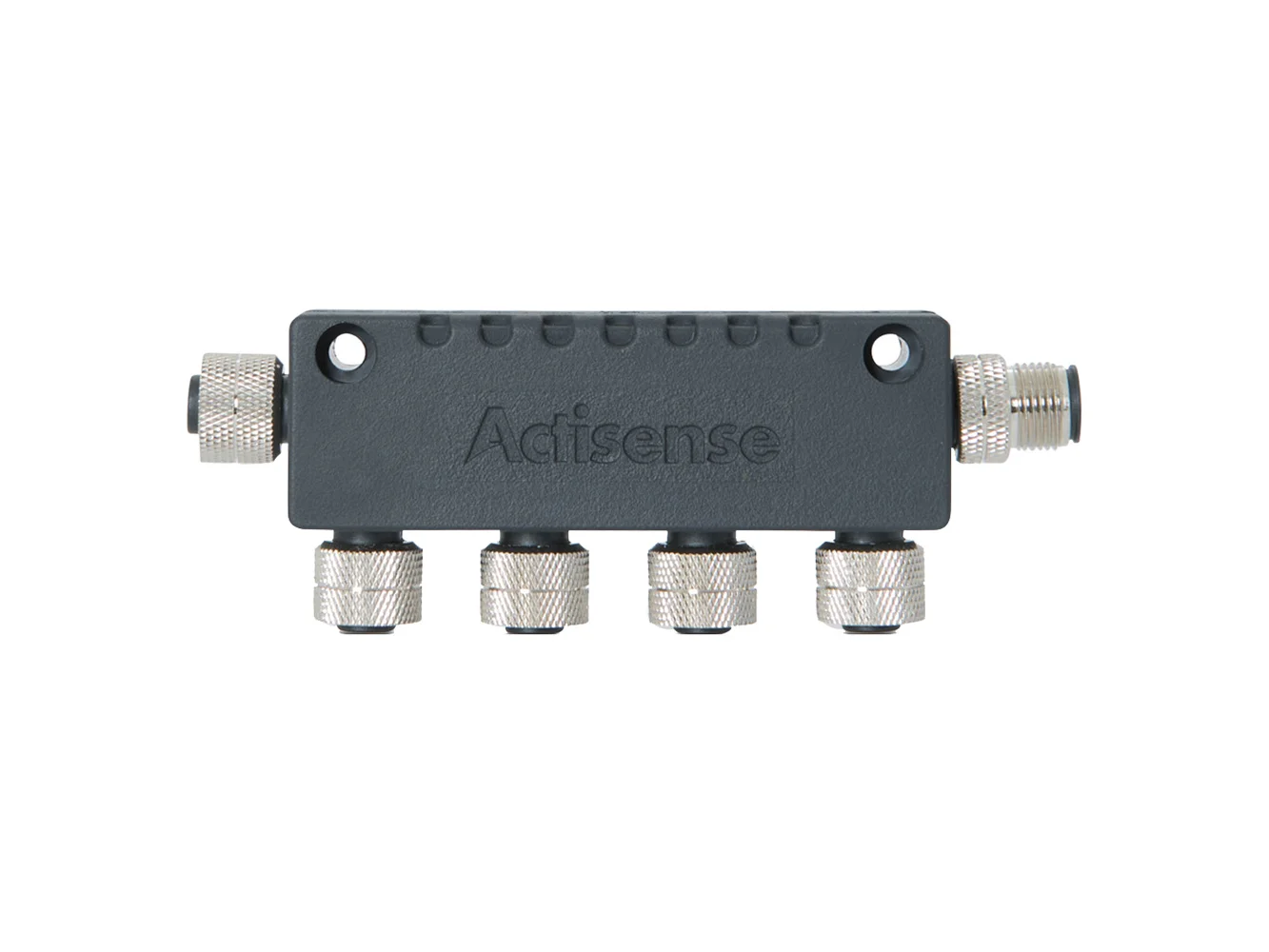

Actisense N2K Micro 4 Way T-Piece

N2K Micro 4 Way T-Piece

The 4 Way T-Piece from Actisense saves you time, space and money on your NMEA 2000® installation.

The Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces and costs less than four.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Features:

• NMEA 2000 Approved
• RoHS Compliant

Technical Specifications:

Electrical

• Rated Current – 4A
• Rated Voltage – 60V DC

Mechanical

• Male Contact – Brass, gold plated
• Female Contact – Phosphor bronze, gold plated
• Contact Carrier – PA66 (30% Glass filled), black
• Contact Polarization – Standard M12 -“A”- polarization
• Mating Thread – M12
• Screw Cap – Brass, nickel plated
• O-Ring Seal – Rubber, Black
• Housing – TPU, flame retardant to UL94V-0, Halogen Free
• Internal Housing Shield – Copper Foil
• Weight – 105g

Approvals and Certifications

• Protection – IP67 (when mated)
• Operating Temperature – -20°C to +70°C
• Storage Temperature – -40°C to +85°C
